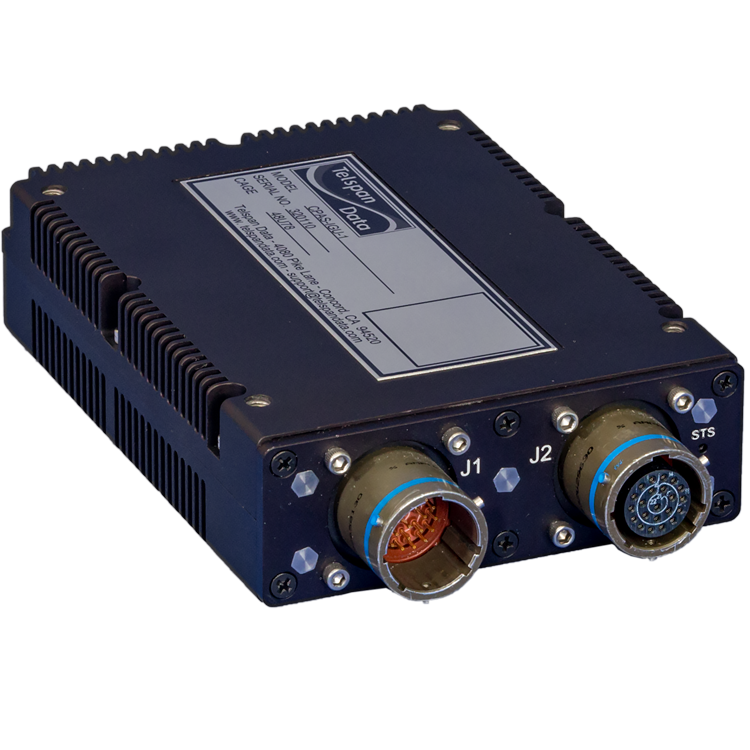

Instrumentation Gateway Unit
The iGU instrumentation Gateway Unit is a configurable gateway between instrumentation systems, Ethernet networks and telemetry transmitters. The iGU contains a hardware based IEEE-1588v2 time engine, a 1PPS output from the 1588 time and IRIG Time Code Generator.
This small self-contained ruggedized unit, contains a layer 2/3 managed Ethernet switch, FPGA and quad-core ARM CPU which allows flexibility in data processing and protocol transforms. The FPGA can be customized to process proprietary Ethernet data streams and output them as Chapter 10. Also, the iGU provides built-in IRIG 106 Chapter 7 PCM conversion which allows the unit to function as an
Ethernet-to-telemetry encoder and telemetry-to-Ethernet decoder.
Features
● 2 Ethernet w/ Layer 2/3 Management
● 2 PCM As Input or Output – RS-422
● CH7 Encoding/Decoding
● Ethernet to Chapter 7 PCM
● Chapter 7 PCM Decoding to Ethernet

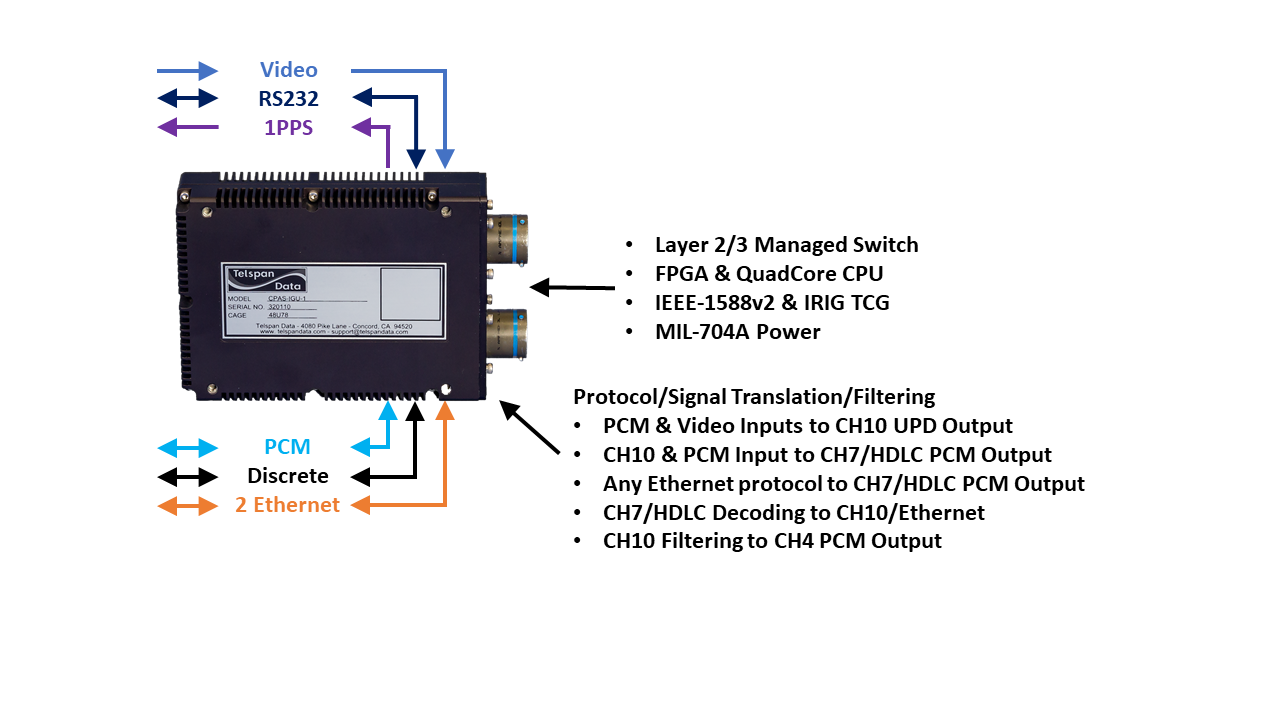

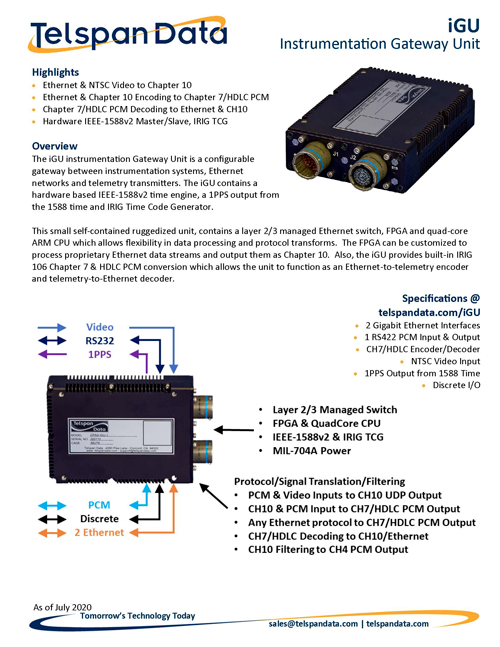

Diagram
Features & Specifications
2 Gigabit Ethernet Interfaces, 1 RS422 PCM Input & 1 Output, 1PPS Output from 1588 Time, Discrete I/O
Inputs/Outputs
(2) 10/100/1000 Speed Ports
(2) PCM RS422
CLI Configure & Monitoring
PCM - CH7 Encoding/Decoding
1 RS-422 PCM Stream Input, 1 RS-422 PCM Stream Output
2 PCM Input (optional)
CH7 PCM Encoding/Decoding
Chapter 10 published stream
The standard PCM input/output format is ISO 13239 HDLC or IRIG 106-15 Chapter 7 Telemetry Downlink Standard from internal switch port Ethernet traffic. The switch port may contain an IRIG 106 Chapter 10 published stream, filtered or mirrored port switch traffic from a network.
Time
1PPS from IEEE-1588v2
FPGA
- Altera Cyclone 4GX
- (2) 1Gbps Switch Interfaces
- NIOS Soft CPU(s)
- User Programmable (Option)
Open/GND Discrete I/O
- Open/GND Data Flag In & Out
- Open/Ground Config Select In
- Open/Ground Reset
- 28VDC Out (user defined)
Environmental/Mechanical
- Dimensions: Width 3.75” x Length 5.1” x Height 1.26”
- Power: MIL-STD-704A 28VDC
- Temperature: MIL-STD-810F -40C to +75C
- Altitude: MIL-STD-810F 60,000’ Extended, 70,000’ 2 Minutes
- Vibration: MIL-STD-810F 515.5, 519.4 With Gun Fire
- Shock: MIL-STD-810F 503.4
- Loads: MIL-STD-810F ± 10g operating, + 15g ultimate
- Explosive: Atmosphere MIL-STD-810F 511.4
- Humidity: MIL-STD-810F 100% Condensing
- EMI/EMC: MIL-STD-461
- Standard Connectors: MIL-DTL-38999
28VDC MIL-STD-704A
1PPS from IEEE-1588v2
-40C to +75C MIL-STD-810F
~ 2 Pounds
Width 3.75”, Length 5.93”, Height 1.32”
MIL-STD-810F Shock/Vibe/Gun Fire Sand/Rain/+ More
(2) Ethernet Ports
Layer 2/3 Managed
Chapter 7 Encoding/Decoding RS-422 I/O
Discrete I/O
Up to 4 Outputs
FPGA / CPU For Protocol Translation

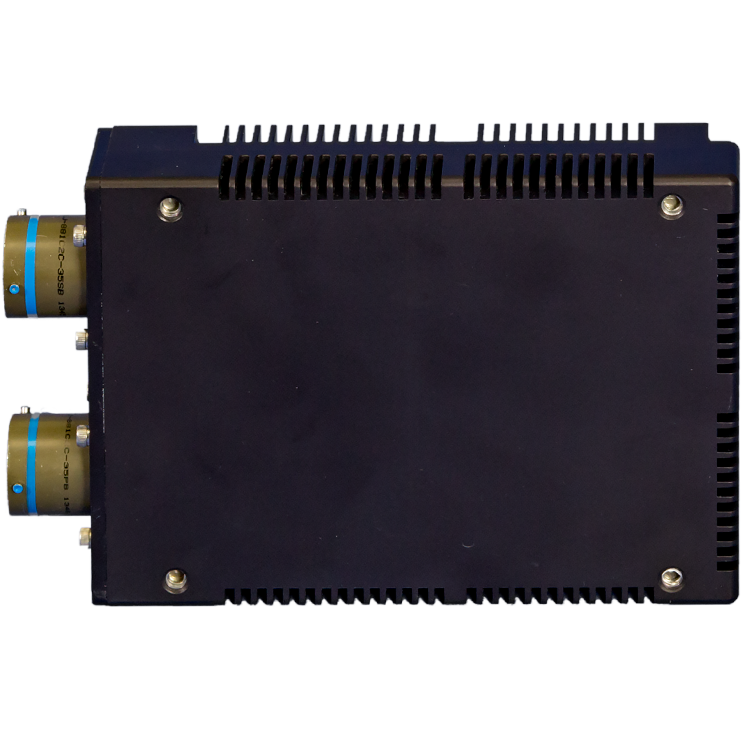

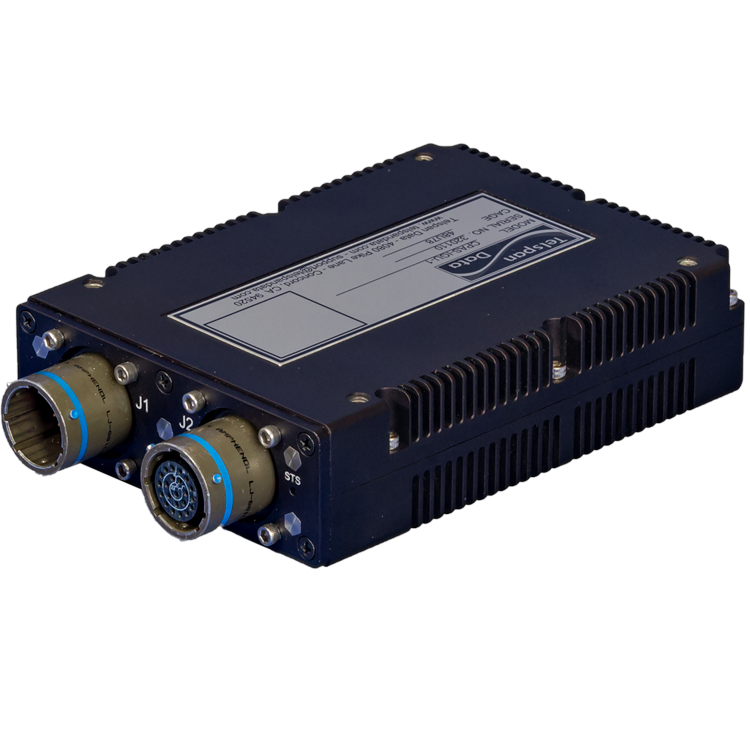

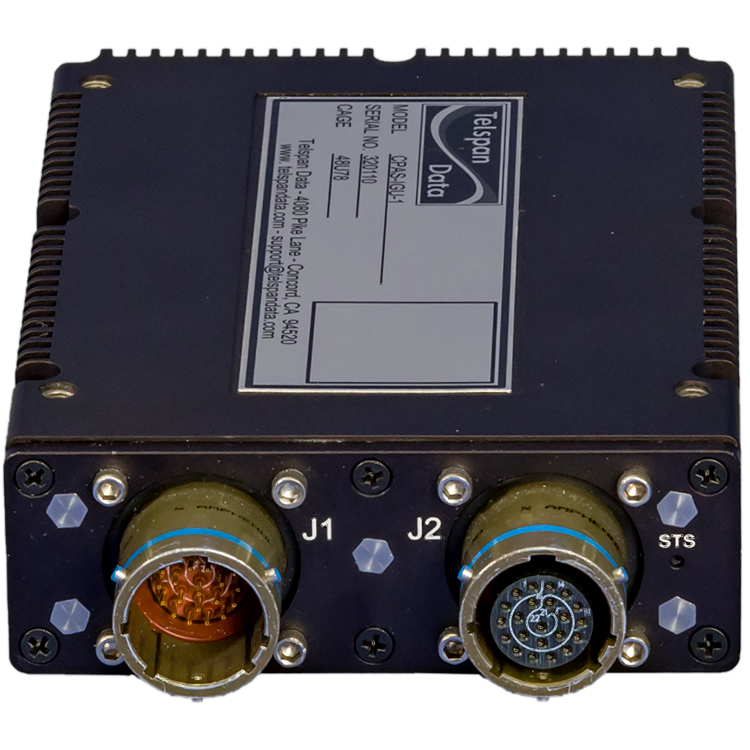

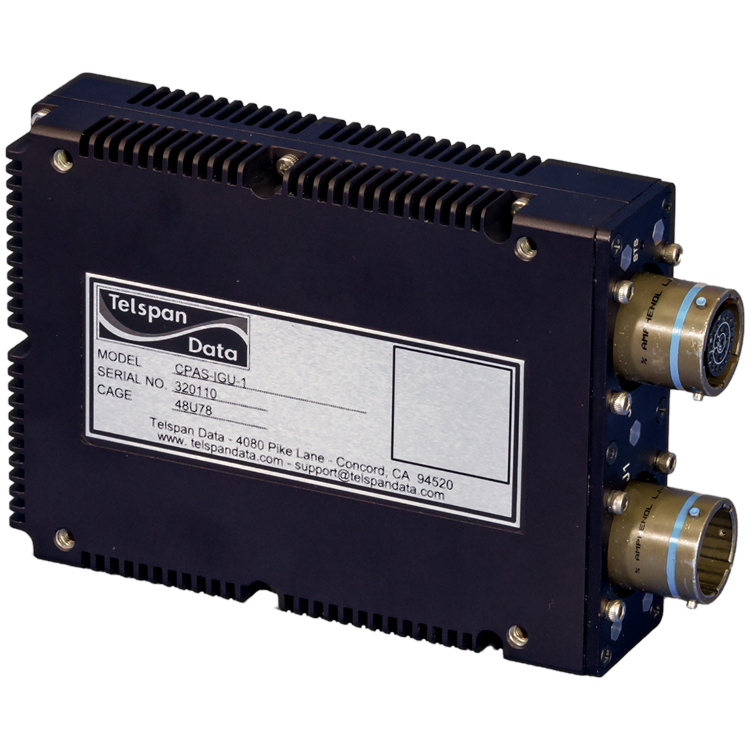

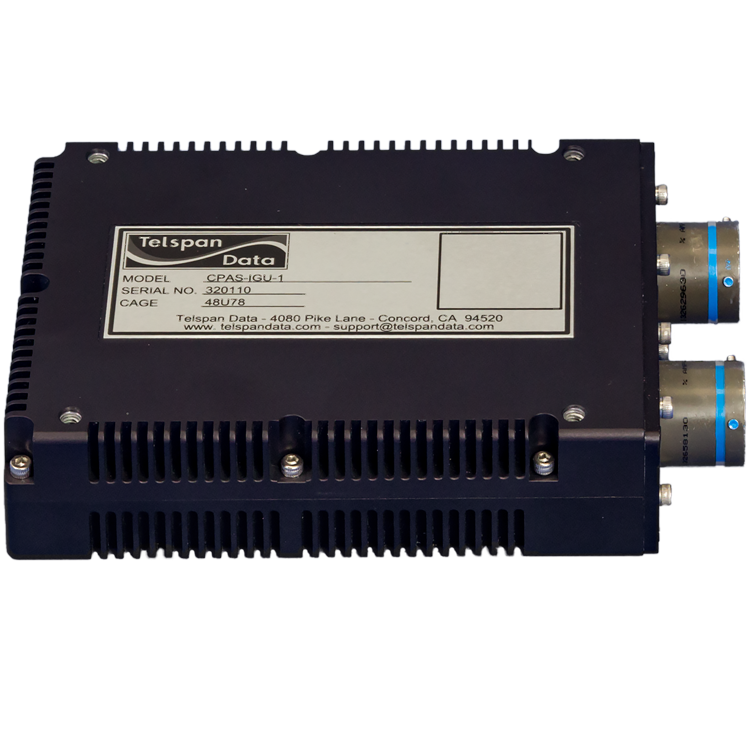

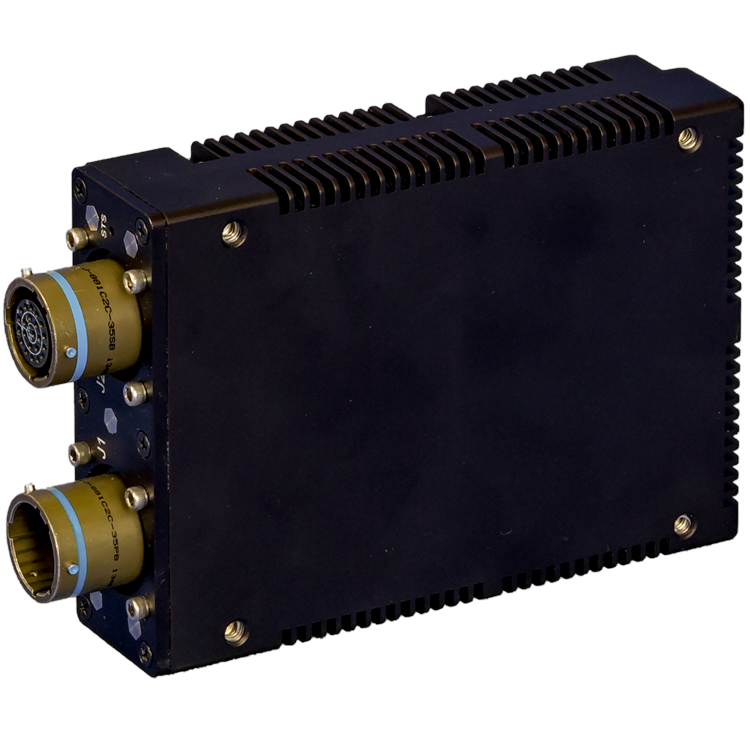

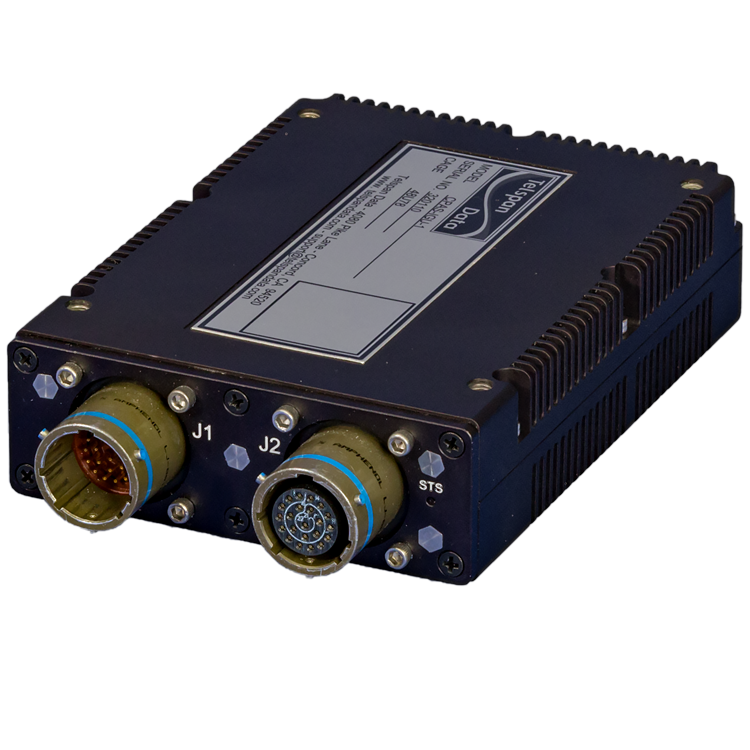

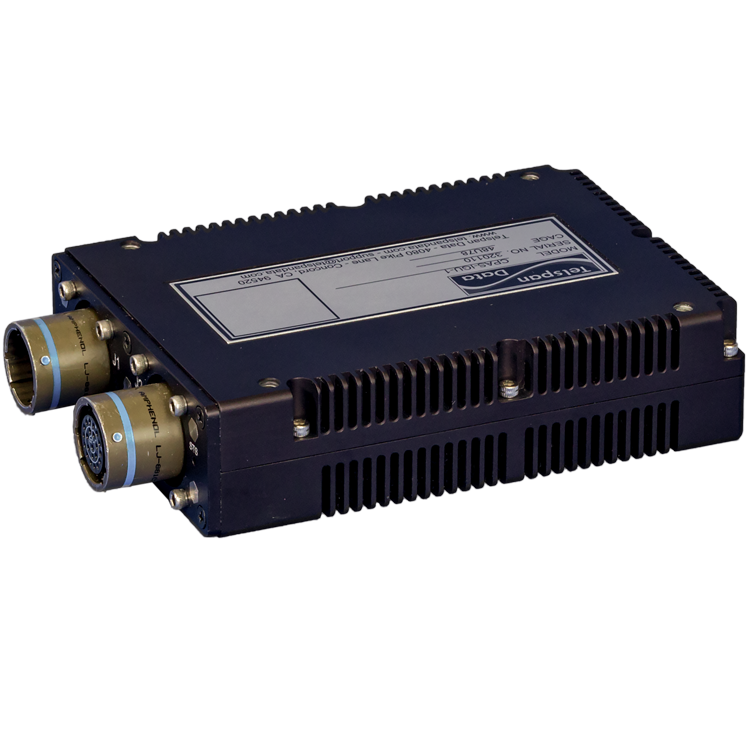

Gallery
